Industrial 110mm Rolled Sugar Cone Making Machine in China

Model 1
Capacity 200 Sets per Month
Voltage Qingdao Port
Size
Features
The rolled sugar cone machine produced by our company can meet the requirements of medium and small cone manufacturers to produce high-quality sugar cones. It has a high degree of automation and high working efficiency.

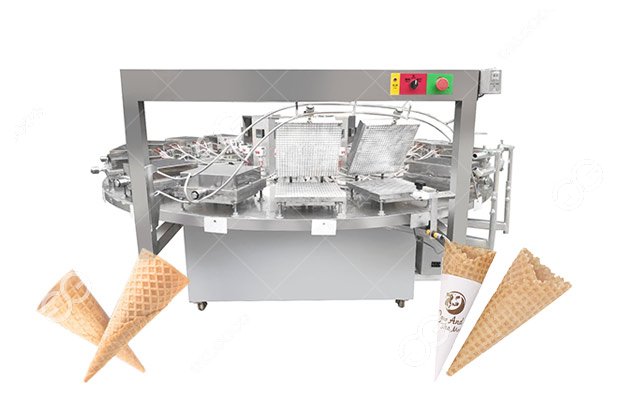

Rolled Sugar Cone Making Machine

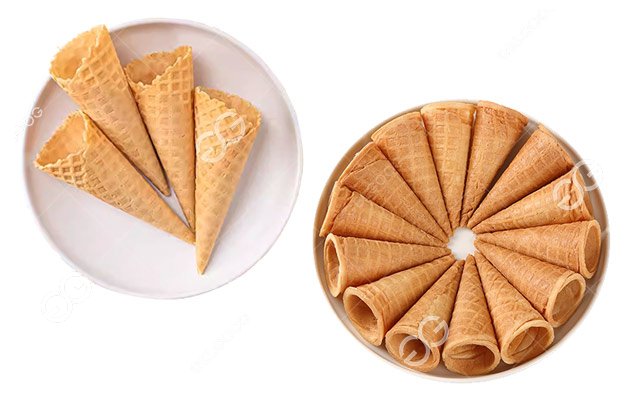

The machine is suitable for making flat mouth rolled sugar cone, it's length less than 120mm. And the degree, weight, thickness and pattern spacing of ice cream cones can be customized according to customer demand.

Description of Automatic Rolled Sugar Cone Making Machine
This machine is one of quality ice cream cone machines, is the ideal equipment to make ice cream sugar cone. With large capacity and high efficiency. The rolled sugar cone machine is mainly used for baking and rolling the ice cream cones, it offer sugar cones to fill in ice cream in the next process.

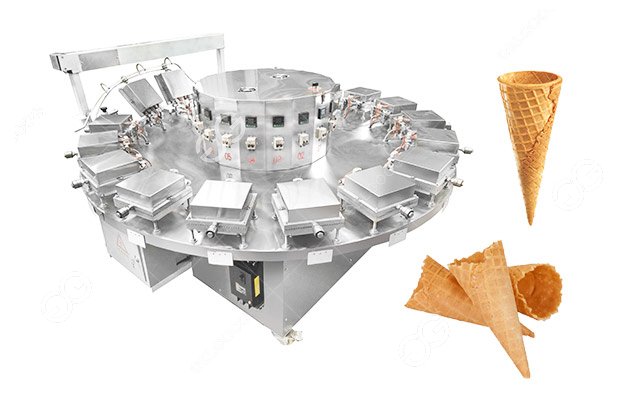

GGDC25 Rolled Sugar Cone Machine in China

Steps of Operating Industrial Sugar Cone Machine
① First prepare all the necessary ingredients, such as sugar, flour, eggs, oil and other materials, and then mix evenly.
② Then pour the batter into the storage barrel and adjust the grouting volume through the cylinder.
③ Then adjust the temperature of the baking tray and wait for the temperature to rise.
④ After filling the batter, wait for tens of seconds and the baking tray will open automatically.
⑤ The rolling part will roll the baked biscuit sheet into a fixed size of rolled sugar cone.

Automatic Rolled Sugar Cone Making Machine Working Video


China Rolled Sugar Cone Machine Packing and Shipping
  • We always use standard export wooden packing, carton box to pack the our machinery.
  • You can choose express, by air, by train or by sea. Always we will give our best recommend based on our experience.
  • We cooperate with China best shipping company to get best price and fast delivery.
  • You will get full feedback when your rolled sugar cone making machine is on the shipping way.

Automatic Rolled Sugar Cone Making Machine 2500pcs
Our factory produce many kinds of rolled sugar cone making machines, such as semi-automatic cone machine, industrial sugar cone machines and ice cream cone production line.


Technical Data
Model GGDC25
Capacity 2000-2500PCS/H
Finished Product Size
(22.5°)
39-46MM
95-115MM
Power 1.5KW
LPG consumption 5kg/h(5.2m³/h)
Compressed air pressure 0.6MPA
Compressed air consumption 6 MPa
Weight 3000KG
Machine size 3200*2700*1900MM
