Sri Lanka Ice Cream Cone Making Machine

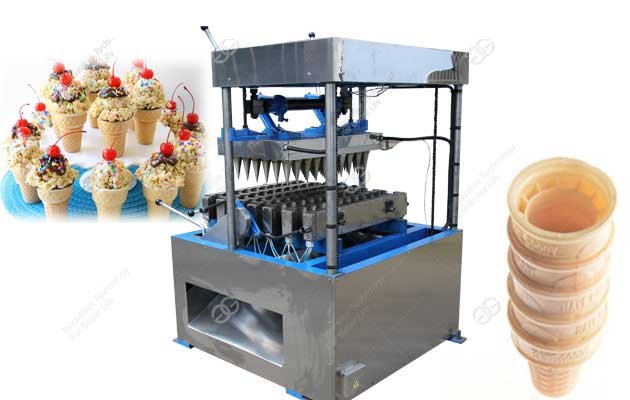

Ice cream cone machine made by our company is often sold to Sri Lanka, and other countries. The ice cream cone making machine is made up of three parts of the frame, the mold and the electrical parts. The machine is suitable for the production of different output of the egg tube, the shape and size can be customized.

(1) Department of welding machine: frame, top panel, bearing mould and operation mechanism, in front of the electrical box below. The surrounding area is covered with steel plates. There is a slideway on the right, so that the finished product will slip out.


(2): die is composed of upper and lower die, the upper die installation core head, hanging on the joint bolts under vertical movement along the column, corresponding to the lower die mold in flat panel, the lower die to the midline is divided into two parts, the front piece is fixed die, the fastening screws on the panel sure, the mold position, the other one is the moving die, can control its traverse, closure cover mold, mold, mandrel and die hole form a specific cavity, if prior into Mianjiang, will be compressed into a cone shape. Lift up the upper die, separate the lower die, form a certain distance, the finished product and the residual material fall into the slipway.


(3) electrical part: the control element is concentrated in the electric box except the executive element is installed in the mold. There are two sets of temperature control instruments on the dashboard, which can adjust and control the temperature of the upper and lower modes, and make it automatically maintained on the adjusted value. The right turn knob, the electric heating tube is electrified, the knob on the arrow indicating the setting temperature. At this point the indicator lights up, indicating that the heating is started. When the mold reaches the set temperature, the lamp is out, and the canister can be baked.


This ice cream wafer cone machine is usually used in conjunction with ice cream machines, and we can also provide ice cream machines. If you need it, welcome to consult and buy.
